# 9. Our First Turtle Program¶

Quick Overview of Day

Learn how to do basic drawing in Python using the turtle module.

• CS20-CP1 Apply various problem-solving strategies to solve programming problems throughout Computer Science 20.
• CS20-FP1 Utilize different data types, including integer, floating point, Boolean and string, to solve programming problems.
• CS20-FP2 Investigate how control structures affect program flow.

There are many modules in Python that provide very powerful features that we can use in our own programs. Some of these can send email or fetch web pages. Others allow us to perform complex mathematical calculations. We have already used one module, called easygui_qt, which allowed us to use pop-up windows when asking for user input. Today, we will introduce a module that allows us to create a data object called a turtle that can be used to draw pictures. The turtle module is very similar to the Pen functionality that we explored using Scratch! Note that the turtle module is part of the standard Python installation, so you do not need to install it before using it.

Turtle graphics, as it is known, is based on a very simple metaphor. Imagine that you have a turtle that understands English. You can tell your turtle to do simple commands such as go forward and turn right. As the turtle moves around, if its tail is down touching the ground, it will draw a line (leave a trail behind) as it moves. If you tell your turtle to lift up its tail it can still move around but will not leave a trail. As you will see, you can make some pretty amazing drawings with this simple capability.

Let’s try a couple of lines of Python code to create a new turtle and start drawing a simple figure like a rectangle. We will refer to our first turtle using the variable name alex, but remember that you can choose any name you wish as long as you follow the naming rules from the previous chapter.

The program as shown will only draw the first two sides of the rectangle. After line 4 you will have a straight line going from the center of the drawing canvas towards the right. After line 6, you will have a canvas with a turtle and a half drawn rectangle. Press the run button to try it and see.

Try This!

Modify the program above by adding the commands necessary to have alex complete the rectangle.

## 9.1. Understanding a Turtle Program¶

Here are a couple of things you’ll need to understand about the turtle program we wrote above.

The first line tells Python to load a module named turtle. That module brings us two new types that we can use: the Turtle type, and the Screen type. The dot notation turtle.Turtle means “The Turtle type that is defined within the turtle module”. (Remember that Python is case sensitive, so the module name, turtle, with a lowercase t, is different from the type Turtle because of the uppercase T.)

We then create and open what the turtle module calls a screen (we would prefer to call it a window, or in the case of this web version of Python simply a canvas), which we assign to variable window. Every window contains a canvas, which is the area inside the window on which we can draw.

In line 3 we create a turtle. The variable alex is made to refer to this turtle. These first three lines set us up so that we are ready to do some drawing.

In lines 4-6, we instruct the object alex to move and to turn. We do this by invoking or activating alex’s methods — these are the instructions that all turtles know how to respond to. Here the dot indicates that the methods invoked belong to and refer to the object alex.

first-turtle1: Which direction does the Turtle face when it is created?
• North
• Some turtle systems start with the turtle facing north, but not this one.
• South
• No, look at the first example with a turtle. Which direction does the turtle move?
• East
• Yes, the turtle starts out facing east.
• West
• No, look at the first example with a turtle. Which direction does the turtle move?

### 9.1.1. Mixed Up Programs¶

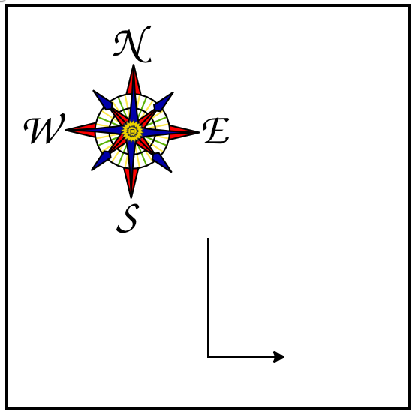

        first-turtle2: The following program uses a turtle to draw a capital L as shown in the picture,  but the lines are mixed up.  The program should do all necessary set-up: import the turtle module, get the window to draw on, and create the turtle.  Remember that the turtle starts off facing east when it is created.  The turtle should turn to face south and draw a line that is 150 pixels long and then turn to face east and draw a line that is 75 pixels long.  We have added a compass to the picture to indicate the directions north, south, west, and east.  Drag the blocks of statements from the left column to the right column and put them in the right order.  Then click on Check Me to see if you are right. You will be told if any of the lines are in the wrong order.import turtle
window = turtle.Screen()
ella = turtle.Turtle()
---
ella.right(90)
ella.forward(150)
---
ella.left(90)
ella.forward(75)

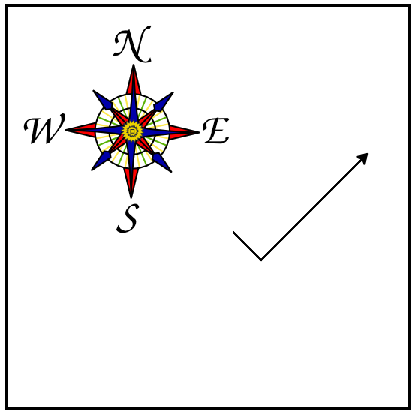

        first-turtle3: The following program uses a turtle to draw a checkmark as shown to the left,  but the lines are mixed up.  The program should do all necessary set-up: import the turtle module, get the window to draw on, and create the turtle.  The turtle should turn to face southeast, draw a line that is 75 pixels long, then turn to face northeast, and draw a line that is 150 pixels long.  We have added a compass to the picture to indicate the directions north, south, west, and east.  Northeast is between north and east. Southeast is between south and east. Drag the blocks of statements from the left column to the right column and put them in the right order.  Then click on Check Me to see if you are right. You will be told if any of the lines are in the wrong order.import turtle
---
window = turtle.Screen()
---
maria = turtle.Turtle()
---
maria.right(45)
maria.forward(75)
---
maria.left(90)
maria.forward(150)

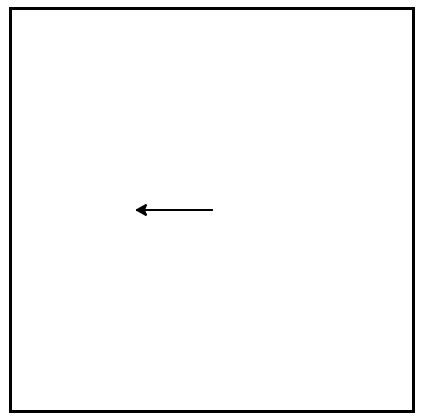

        first-turtle4: The  following program uses a turtle to draw a single line to the west as shown to the left, but the program lines are mixed up.  The program should do all necessary set-up: import the turtle module, get the window to draw on, and create the turtle.  The turtle should then turn to face west and draw a line that is 75 pixels long.Drag the blocks of statements from the left column to the right column and put them in the right order.  Then click on Check Me to see if you are right. You will be told if any of the lines are in the wrong order.import turtle
window = turtle.Screen()
jamal = turtle.Turtle()
jamal.left(180)
jamal.forward(75)


## 9.2. Turtle Methods¶

An object can have various methods — things it can do — and it can also have attributes — (sometimes called properties). For example, each turtle has a color attribute. The method invocation alex.color("red") will make alex red and the line that it draws will be red too.

The color of the turtle, the width of its pen(tail), the position of the turtle within the window, which way it is facing, and so on are all part of its current state. Similarly, the window object has a background color which is part of its state.

Quite a number of methods exist that allow us to modify the turtle and window objects. In the example below, we show just show a couple and have only commented those lines that are different from the previous example. Note also that we have decided to call our turtle object tess, and have changed the name of the Screen object to be wn.

The last line plays a very important role. The wn variable refers to the window shown above. When we invoke its exitonclick method, the program pauses execution and waits for the user to click the mouse somewhere in the window. When this click event occurs, the response is to close the turtle window and exit (stop execution of) the Python program.

Each time we run this program, a new drawing window pops up, and will remain on the screen until we click on it.

first-turtle5: Consider the following code:

import turtle
wn = turtle.Screen()
alex = turtle.Turtle()
alex.forward(150)
alex.left(90)
alex.forward(75)


What does the line “import turtle” do?

• It creates a new turtle object that can be used for drawing.
• The line "alex = turtle.Turtle()" is what actually creates the turtle object.
• It defines the module turtle which will allow you to create a Turtle object and draw with it.
• This line imports the module called turtle, which has all the built in functions for drawing on the screen with the Turtle object.
• It makes the turtle draw half of a rectangle on the screen.
• This functionality is performed with the lines: "alex.forward(150)", "lex.left(90)", and "alex.forward(75)"
• Nothing, it is unnecessary.
• If we leave it out, Python will give an error saying that it does not know about the name "turtle" when it reaches the line "wn = turtle.Screen()"
first-turtle6: Why do we type turtle.Turtle() to get a new Turtle object?
• This is simply for clarity. It would also work to just type "Turtle()" instead of "turtle.Turtle()".
• We must specify the name of the module where Python can find the Turtle object.
• The period (.) is what tells Python that we want to invoke a new object.
• The period separates the module name from the object name. The parentheses at the end are what tell Python to invoke a new object.
• The first "turtle" (before the period) tells Python that we are referring to the turtle module, which is where the object "Turtle" is found.
• Yes, the Turtle type is defined in the module turtle. Remember that Python is case sensitive and Turtle is different from turtle.
first-turtle7: True or False: A Turtle object can have any name that follows the naming rules from Chapter 2.
• True
• In this chapter you saw one named alex and one named tess, but any legal variable name is allowed.
• False
• A variable, including one referring to a Turtle object, can have whatever name you choose as long as it follows the naming conventions from Chapter 2.

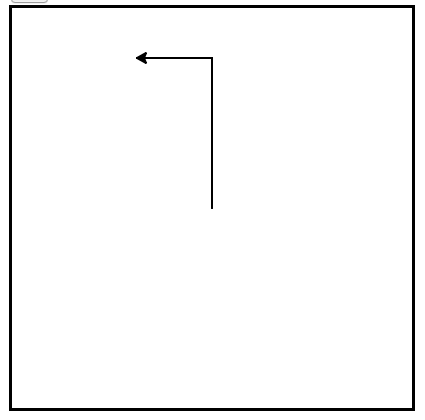

first-turtle8: Which of the following code would produce the following image?

• This code would turn the turtle to the south before drawing
• This code would turn the turtle to the west before drawing
• This code would turn the turtle to the south before drawing
• This code is almost correct, but the short end would be facing east instead of west.
• Yes, the turtle starts facing east, so to turn it north you can turn left 90 or right 270 degrees.

## 9.4. More Mixed Up Programs!¶

        first-turtle9: The following program uses a turtle to draw a capital L in white on a blue background as shown to the left,  but the lines are mixed up.  The program should do all necessary set-up and create the turtle and set the pen size to 10.  The turtle should then turn to face south, draw a line that is 150 pixels long, turn to face east, and draw a line that is 75 pixels long.   Finally, set the window to close when the user clicks in it.Drag the blocks of statements from the left column to the right column and put them in the right order.  Then click on Check Me to see if you are right. You will be told if any of the lines are in the wrong order.import turtle
wn = turtle.Screen()
---
wn.bgcolor("blue")
jamal = turtle.Turtle()
---
jamal.color("white")
jamal.pensize(10)
---
jamal.right(90)
jamal.forward(150)
---
jamal.left(90)
jamal.forward(75)
wn.exitonclick()

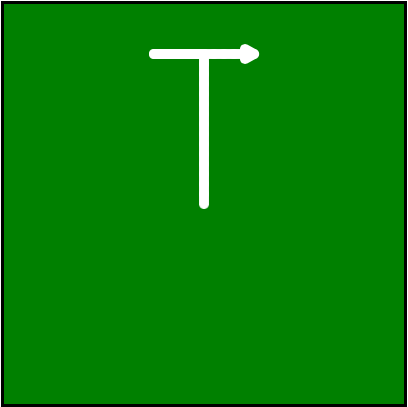

        first-turtle10: The following program uses a turtle to draw a capital T in white on a green background as shown to the left,  but the lines are mixed up.  The program should do all necessary set-up, create the turtle, and set the pen size to 10.  After that the turtle should turn to face north, draw a line that is 150 pixels long, turn to face west, and draw a line that is 50 pixels long.  Next, the turtle should turn 180 degrees and draw a line that is 100 pixels long.  Finally, set the window to close when the user clicks in it.Drag the blocks of statements from the left column to the right column and put them in the right order.  Then click on Check Me to see if you are right. You will be told if any of the lines are in the wrong order.import turtle
wn = turtle.Screen()
wn.bgcolor("green")
jamal = turtle.Turtle()
jamal.color("white")
jamal.pensize(10)
---
jamal.left(90)
jamal.forward(150)
---
jamal.left(90)
jamal.forward(50)
---
jamal.right(180)
jamal.forward(100)
---
wn.exitonclick()


## 9.5. Practice Problems¶

Try the following practice problems. You can either work directly in the textbook, or using Thonny. Either way, copy/paste your finished code into Thonny and save your solution into your Computer Science 20 folder when you finish!

You might find the Python Documentation for the turtle module to be helpful: https://docs.python.org/3/library/turtle.html

Caution

Be sure that you DO NOT save any file as turtle.py. If you do, when you call import turtle, Python looks for a file called turtle.py, which means that it will import the turtle.py file you just saved. You will get an error when attempting to create a Screen() or Turtle() object, as these will not actually be defined.

### 9.5.1. Color Selection¶

Modify the program given below so that before it creates the window, it prompts the user to enter the desired background color. It should store the user’s response in a variable, and modify the color of the window according to the user’s wishes. Do similar changes to allow the user to set the turtle bree’s color as well.

(Hint: you can find a list of permitted color names at https://www.w3schools.com/colors/colors_names.asp . It includes some quite unusual ones, like “PeachPuff” and “HotPink”.)

Note

If you are running your code in Thonny, the order of your instructions matters a lot, since a window will open up in front of the main Thonny window (whereas in the browser, the window is just a canvas on the webpage). You might want to ask the user questions before creating a Screen() to draw on. Although you can use something like easygui_qt to ask the questions with pop-up windows, there is also a screen.textinput("Window name", "Question to ask") function built into the turtle module that will cause a pop-up window to appear. You need to use the name of your turtle.Screen() instance when calling the textinput function. For example:

canvas = turtle.Screen()
question = canvas.textinput("Window name", "Question to ask")


Be aware, however, that the textinput() function will not work in the browser version of Python.

Do not look at this sample solution unless you have already finished creating your own solution!

The following solution will work well in the browser, where a text input box appears automatically when you call the input() function:

# Color Selection

import turtle

# create window, and set it's color
canvas = turtle.Screen()
the_background_color = input("Please enter a background color: ")
canvas.bgcolor(the_background_color)

#create the turtle, and it's attributes
bree = turtle.Turtle()
brees_color = input("Please enter the color of the turtle: ")
bree.color(brees_color)
bree.pensize(3)

#draw!
bree.forward(100)
bree.right(60)
bree.forward(100)


If you are using Thonny to create your solution, you will likely want to use the screen.textinput("window name", "question to ask") function when asking for user input. Here is a version that does that:

# Color Selection

import turtle

# create window, and set it's color
canvas = turtle.Screen()
the_background_color = canvas.textinput("Color", "Please enter a background color: ")
canvas.bgcolor(the_background_color)

#create the turtle, and it's attributes
bree = turtle.Turtle()
brees_color = canvas.textinput("Color", "Please enter the color of the turtle: ")
bree.color(brees_color)
bree.pensize(3)

#draw!
bree.forward(100)
bree.right(60)
bree.forward(100)


### 9.5.2. Drawing any Size of Square¶

Create a program that uses the turtle module to draw a square. The user should be able to set a number of options each time the code runs, so the program should ask the user for:

• the width of the turtles pen
• the turtle color
• the length of the sides of the square that will be drawn
• the background color to use

Hint: your input from the user will return a string, but the turtles pensize method expects its argument to be an int. That means you need to convert the string to an int before you pass it to pensize.
